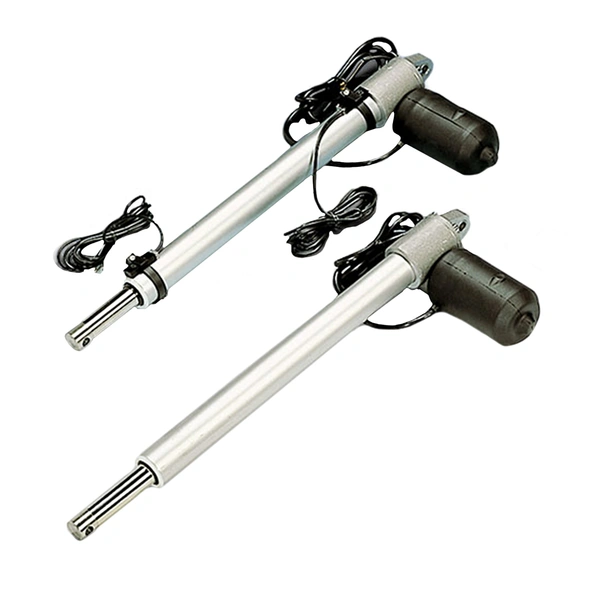

Ball screw linear actuators
AC & DC ball screw actuators type BSA to 123 kN
These ball screw type linear actuators suit medium to heavy duty industrial applications with a duty cycle up to 100% and forces in a range 1200 N to 123 kN. Speeds are up to 115 mm/s and strokes up to 1.5 m. Motors are ac 1 or 3 phase servo or dc 24 V up to BSA40.
There is a wide range of available motors - standard AC with 1 or 3 phase supply, DC with 12 or 24 V supply and AC servo. Many options include limit switches, encoder feedback, bellows and safety nuts.
Model | Speed range (mm/s) | Max force (N) | AC motors (kW) |
|---|---|---|---|
BSA10 | 4.5-58 | 3,000 | 0.06-0.09 |
BSA20 | 2.3-60 | 4,000 | 0.09-0.12 |
BSA25 | 2.3-60 | 5,000 | 0.09-012 |
BSA30 | 5-60 | 60,000 | 0.18-0.25 |
BSA40 | 515-56 | 8,0000 | 0.37-0.55 |
BSA50 | 10-78 | 25,000 | 0.75-1.5 |
BSA63 | 8-66 | 37,000 | 0.75-2.2 |
BSA100 | 12-93 | 108,000 | 2.2-7.5 |
BSA80 | 15-115 | 60,000 | 1.5-4.0 |
BSA100 | 12-93 | 108,000 | 2.2-7.5 |
BSA125 | 12-70 | 123,000 | 4-7.5 |
For selection guidance on linear actuators we recommend you involve our engineering specialists.
