Light duty linear actuators

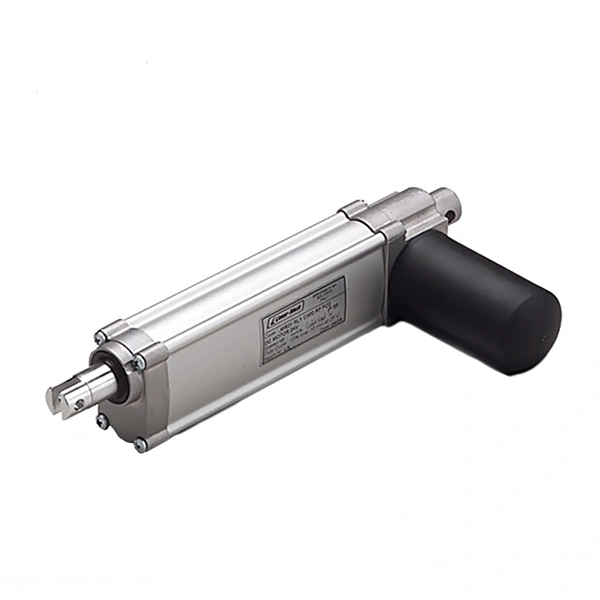

Small DC actuators type LMR to 6,000 N
Three sizes with dc motors at 12 or 24 V give speeds 5 to 50 mm/s and forces up to 6,000 N. Standard strokes range from 50 to 500 mm. Actuators are maintenance free and enclosure is IP65. Duty is 15% over a 10-minute period. There are built-in limit switches.
LMR actuators have built-in limit switches that are mounted internally and are easily adjustable. Normally the switches are wired for external control, but a standard option is to have them connected directly to the motor, so it is automatically turned off.
Model | Ratio Code | Speed mm/s | Max Force N | Max Stroke mm | Motor |
|---|---|---|---|---|---|
LMR01 | RL1 | 10 | 1,300 | 300 | 3A 24V |
LMR01 | RL2 | 20 | 1,200 | 300 | 5A 24V |
LMR01 | RN1 | 26 | 800 | 300 | 4A 24V |
LMR01 | RN2 | 50 | 500 | 300 | 5A 24V |
LMR02 | RN1 | 19 | 1,500 | 400 | 7A 24V |
LMR02 | RN2 | 35 | 1,000 | 400 | 7A 24V |
LMR02 | RL1 | 6 | 3,000 | 400 | 7A 24V |
LMR02 | RL2 | 14 | 3,000 | 400 | 7A 24V |
LMR03 | RL1 | 5 | 6,000 | 500 | 7A 24V |
LMR03 | RL2 | 10 | 6,000 | 500 | 8A 24V |
LMR03 | RN1 | 14 | 5,000 | 500 | 10A 24V |
LMR03 | RN2 | 25 | 3,500 | 500 | 9A 24V |
