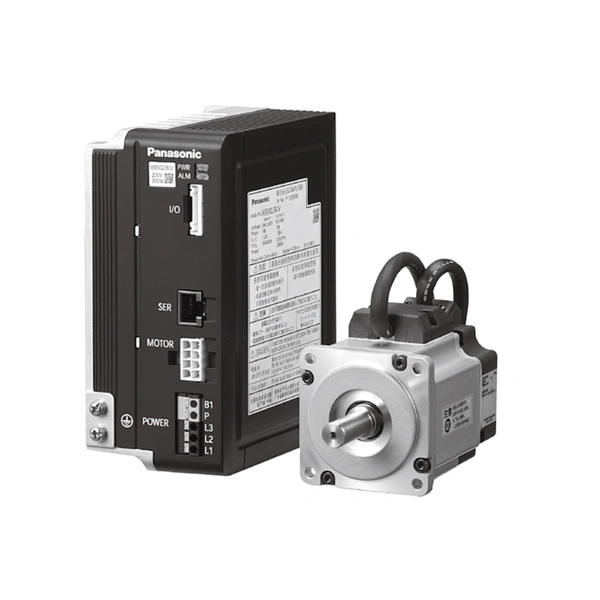

MINAS KV
For servo like performance at low cost
The MINAS KV available from 50 to 750 W gives performance approaching servo levels at low cost. Servo style motors with low inertia are highly dynamic. They are ideal for speed-controlled applications and the upgrading of stepper drives.
Rated speed is 3,000 r/min and the speed control range is 100 to 4,000 r/min.
Motor | Body size | Rated | Starting torque | Rated | Supply |
|---|---|---|---|---|---|
50 | 38 | 0 | 0 | 1 | 1~110/230 V |
100 | 60 | 0 | 1 | 1 | 1~110/230 V |
200 | 60 | 1 | 1 | 2 | 1~110/230 V |
400 | 60 | 1 | 3 | 2 | 1~230 V |
750 | 80 | 2 | 6 | 4 | 1~230 V |
8 preset speeds are available. Speed variation is 0.5% or less. Drives are compact, up to 100W 35 wide x 120 high x 105 deep, higher powers 68 wide x 150 high x 120 deep.
Options include digital and analogue keypads, pre-configured cables, RFI filter and PC connection cable. Planetary gearheads can be supplied on request.
PANATERM operating software is free of charge.
On request we can supply planetary gearheads to suit the motors 200 to 750 W.
